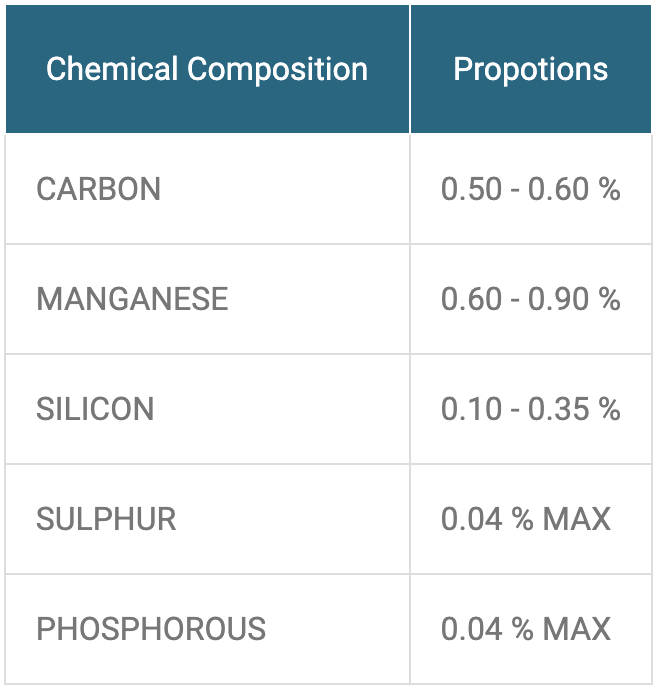

Chemical Composition
|
Propotions
|
|---|---|
|
CARBON
|
0.50 - 0.60 %
|
|
MANGANESE
|
0.60 - 0.90 %
|
|
SILICON
|
0.10 - 0.35 %
|
|
SULPHUR
|
0.04 % MAX
|
|
PHOSPHOROUS
|
0.04 % MAX
|
|

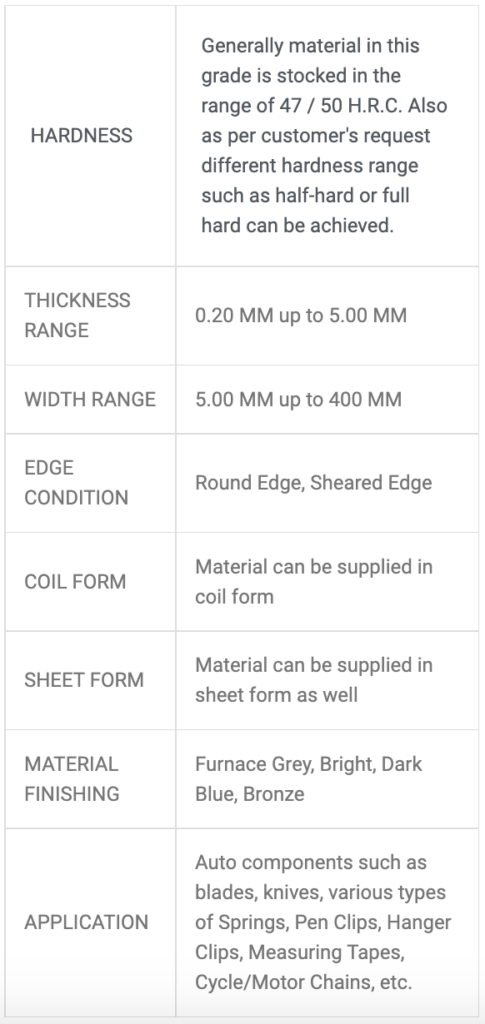

HARDNESS
|
Generally material in this grade is stocked in the range of 47 / 50 H.R.C. Also as per customer's request different hardness range such as half-hard or full hard can be achieved.
|
|---|---|
|
THICKNESS RANGE
|
0.20 MM up to 5.00 MM
|
|
WIDTH RANGE
|
5.00 MM up to 400 MM
|
|
EDGE CONDITION
|
Round Edge, Sheared Edge
|
|
COIL FORM
|
Material can be supplied in coil form
|
|
SHEET FORM
|
Material can be supplied in sheet form as well
|
|
MATERIAL FINISHING
|
Furnace Grey, Bright, Dark Blue, Bronze
|
|
APPLICATION
|
Auto components such as blades, knives, various types of Springs, Pen Clips, Hanger Clips, Measuring Tapes, Cycle/Motor Chains, etc.
|
|

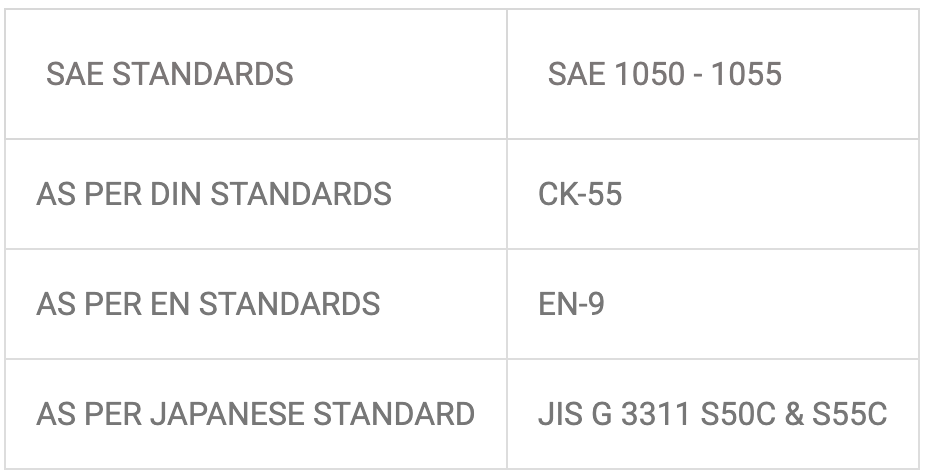

SAE STANDARDS
|
SAE 1050 - 1055
|
|---|---|
|
AS PER DIN STANDARDS
|
CK-55
|
|
AS PER EN STANDARDS
|
EN-9
|
|
AS PER JAPANESE STANDARD
|
JIS G 3311 S50C & S55C
|
