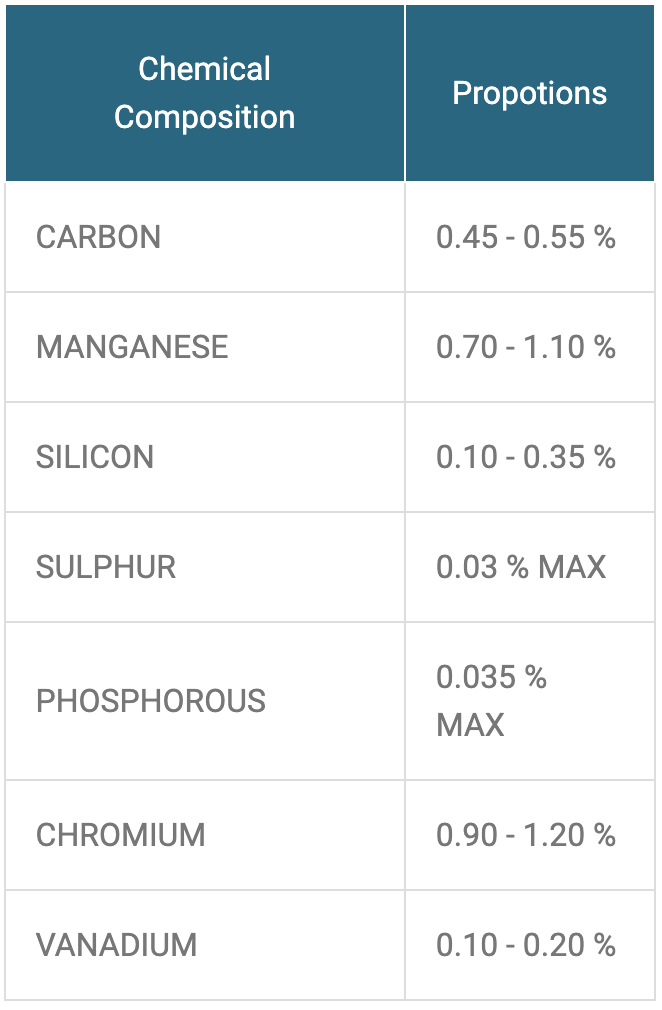

Chemical Composition
|
Propotions
|
|---|---|
|
CARBON
|
0.45 - 0.55 %
|
|
MANGANESE
|
0.70 - 1.10 %
|
|
SILICON
|
0.10 - 0.35 %
|
|
SULPHUR
|
0.03 % MAX
|
|
PHOSPHOROUS
|
0.035 % MAX
|
|
CHROMIUM
|
0.90 - 1.20 %
|
|
VANADIUM
|
0.10 - 0.20 %
|
|

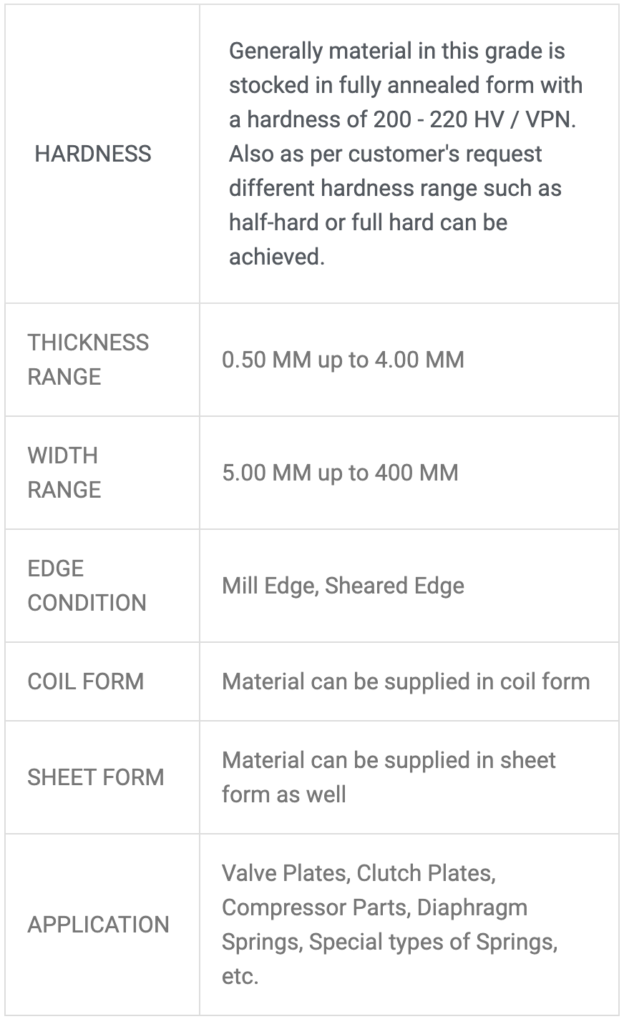

HARDNESS
|
Generally material in this grade is stocked in fully annealed form with a hardness of 200 - 220 HV / VPN. Also as per customer's request different hardness range such as half-hard or full hard can be achieved.
|
|---|---|
|
THICKNESS RANGE
|
0.50 MM up to 4.00 MM
|
|
WIDTH RANGE
|
5.00 MM up to 400 MM
|
|
EDGE CONDITION
|
Mill Edge, Sheared Edge
|
|
COIL FORM
|
Material can be supplied in coil form
|
|
SHEET FORM
|
Material can be supplied in sheet form as well
|
|
APPLICATION
|
Valve Plates, Clutch Plates, Compressor Parts, Diaphragm Springs, Special types of Springs, etc.
|
|

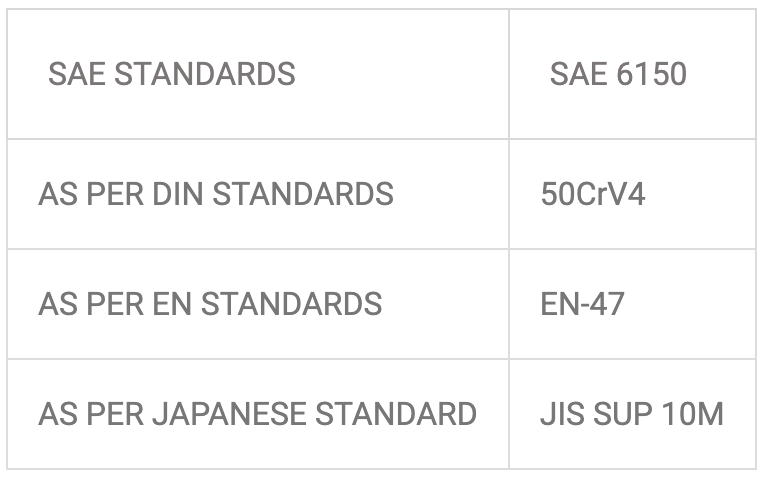

SAE STANDARDS
|
SAE 6150
|
|---|---|
|
AS PER DIN STANDARDS
|
50CrV4
|
|
AS PER EN STANDARDS
|
EN-47
|
|
AS PER JAPANESE STANDARD
|
JIS SUP 10M
|
